Pacbrake HP325 Series Onboard Air Kit HP10163

Pacbrake onboard air systems are all 33% duty cycle (20 minutes @ 100 psi) and increase air volume depending on the tank size (for compressed air storage).

Use it for Air Horns, Air Lockers and filling tires upto 33″

Pacbrake HP325 Series Onboard Air Kit with 0.5 Gallon Air Tank

Pacbrake onboard air systems are all 33% duty cycle (20 minutes @ 100 psi) and increase air volume depending on the tank size (for compressed air storage).

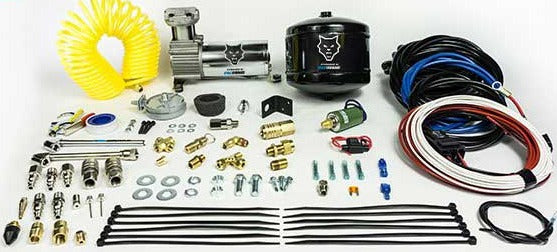

Each onboard air system comes complete with a steel air tank, pressure switch, relay(s), HP325 series compressor, fittings, electrical connectors &Pacbrake; an Pacbrake curly hose &Pacbrake; air accessory kit housed in a heavy duty zipped canvas bag for easy storage on the go.

COMPRESSOR SPECIFICS (HP10143)

• 33% Duty Cycle (20 minutes @ 100 PSI)
• 150 PSI Max Working Pressure
• 1.2 SCFM
• 158°F Max / -40°F Ambient Temperature Range
• Size: 8.7″ x 4″ x 6.2″ (LxWxH)
• Weight: 5.5 lbs
• Mountable in any orientation

TANK SPECIFICS (C11940)

• Ports: 2 x ¼” (-4) NPT
• Rust Inhibitor: Applied to inside of tank
• Max Working Pressure: 150 psi
• Size: 6.4″ x 5.5″ x 6.5″ (LxWxH) [163 mm x 140 mm x 152 mm]
• Weight: 3.4 lbs [1.54 kg]
• Welded on Mounting Brackets

CURLY HOSE &Pacbrake; AIR ACCESSORIES KIT (C11657)

• Fill your tires and check tire pressure
• Inflate air mattresses, sports balls, beach toys, etc.
• Blow air for cleaning, dusting and quick removal of
  dust and debris
