EMF 2003-2007 14mm bolt Dodge Track Bar Bushing Replacement

EMF 2003-2007 14mm bolt Dodge Track Bar Bushing Replacement

SKU: BSHA-40082-RB-14mm

Regular price $42.00
Regular price Sale price $42.00
Sale Sold out
Shipping calculated at checkout.

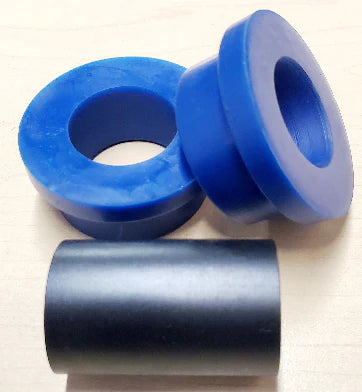

Includes: 1 pair of bushings (2 halves) & 1 sleeve

Made to fit inside 1.625" ID Bracket and has 14mm Bolt Sleeves.  These do not need a housing to be replaced, they are popped out of the track bar and replaced with just the bushing and sleeve.

EMF Dodge Trackbar Bushing Replacement - Made in Canada out of a high quality, high-durometer material to ensure a long lasting product.  Inner Sleeve is made from 4140 HTSR Chromoly Steel and then Gas Nitrided.

Bushings replace existing ones in Dodge Track Bars that take ones this size.  Bushings were sized after Moog K80777

Large Flange Diameter - 1.84 inches x 0.255" wide

Outer Diameter - 1.525 inches x 0.53" wide

Length of Inner Sleeve - 1.617 inches x 0.873" Diameter

Fastener Bolt Size - 14mm (03-07 Dodge)

BUSHING MATERIAL SPECS

MADE IN CANADA

DUROMETER (HARDNESS) - 95 +/- 5

SPECIFIC GRAVITY - 1.13 G/CC

TENSILE STRENGTH - 6500 PSI

100% MODULUS - 1800 PSI

FLEXURAL MODULUS - 4300 PSI

ULTIMATE ELONGATION - 380%

COMPRESSION SET - 22HR @ +70 DEGREES - 36%

TEMPERATURE RANGE - -40 TO +92 DEGREES CELSIUS (-40 TO +200 DEGREES FARENHEIT)

BELL BRITTLE POINT - -63 DEGREES CELSIUS (-80 DEGREES FARENHEIT)

BAYSHORE REBOUND - 40%

ABRASION RESISTANCE - 70 MM3

TEAR RESISTANCE, INITIAL - 700 PLI

TEAR RESISTANCE, PROPOGATION - 130 PLI
