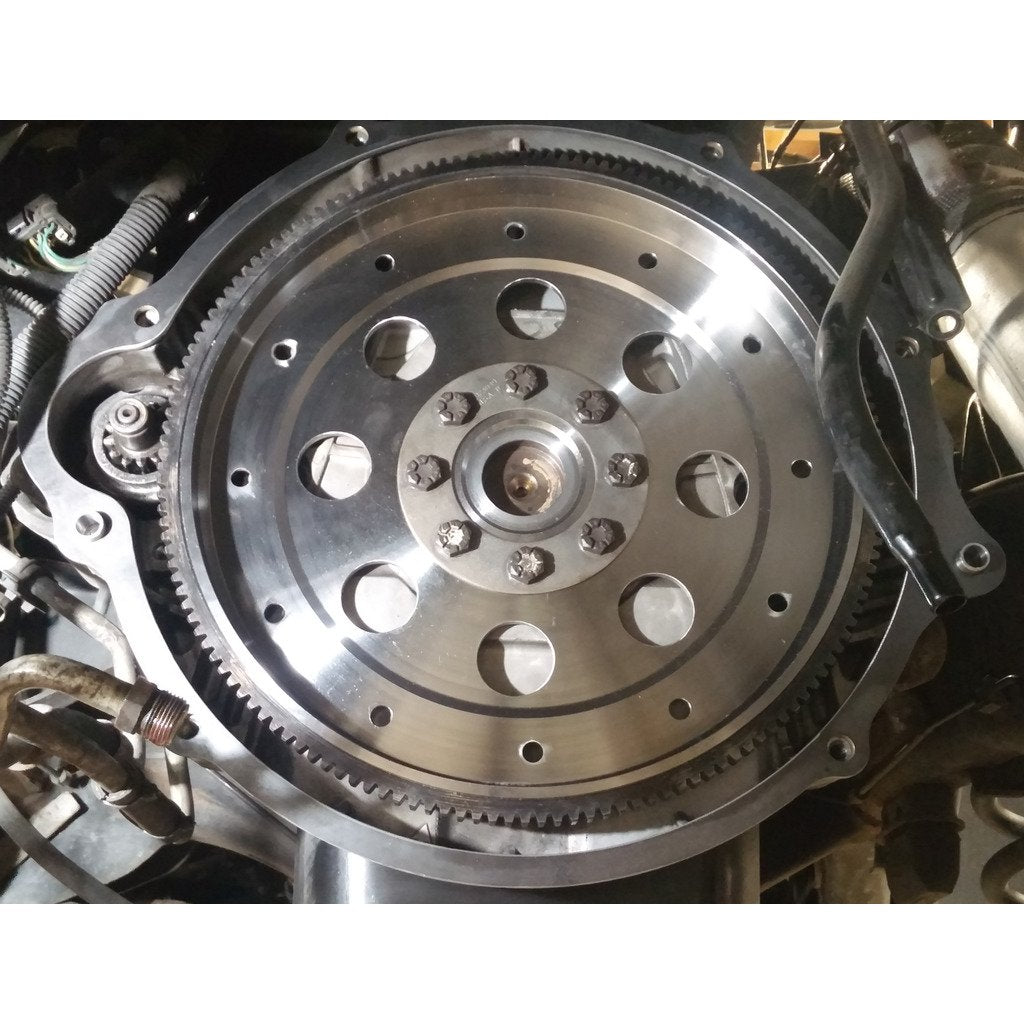

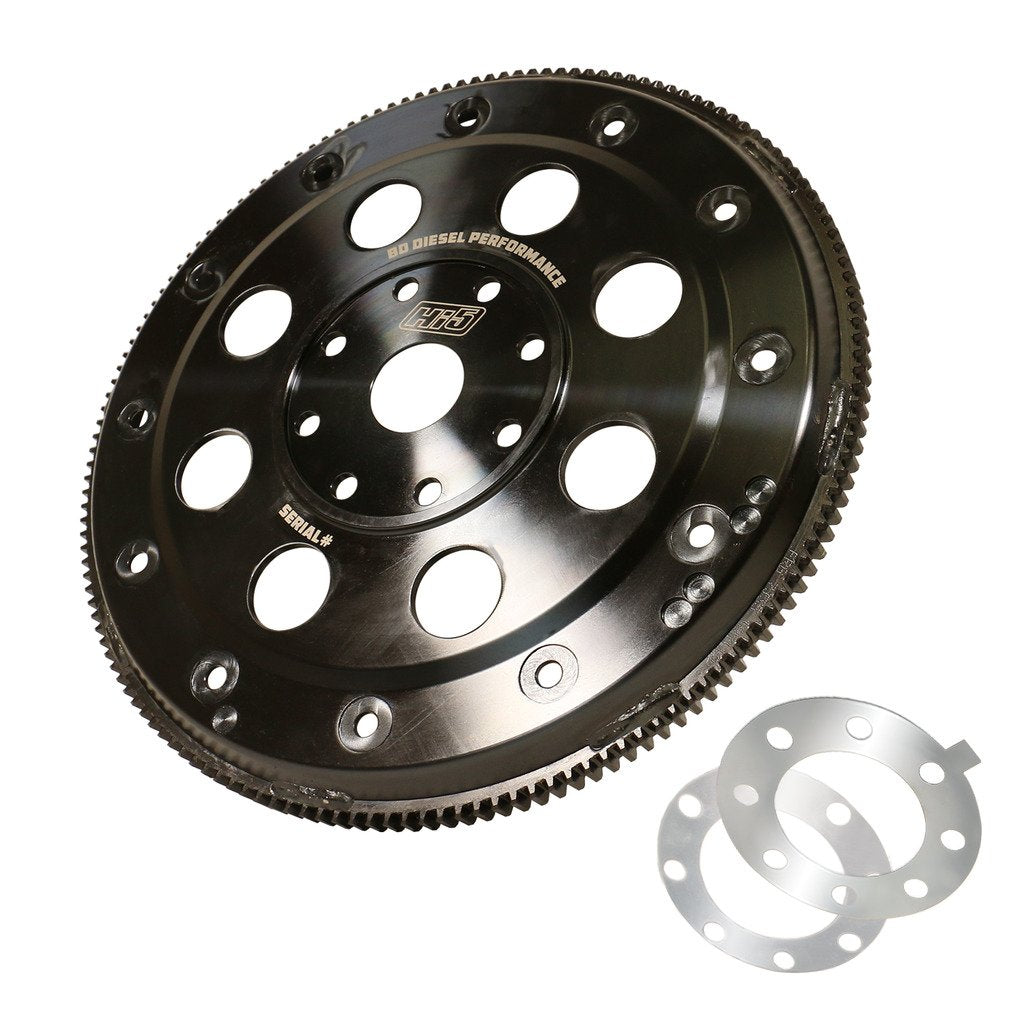

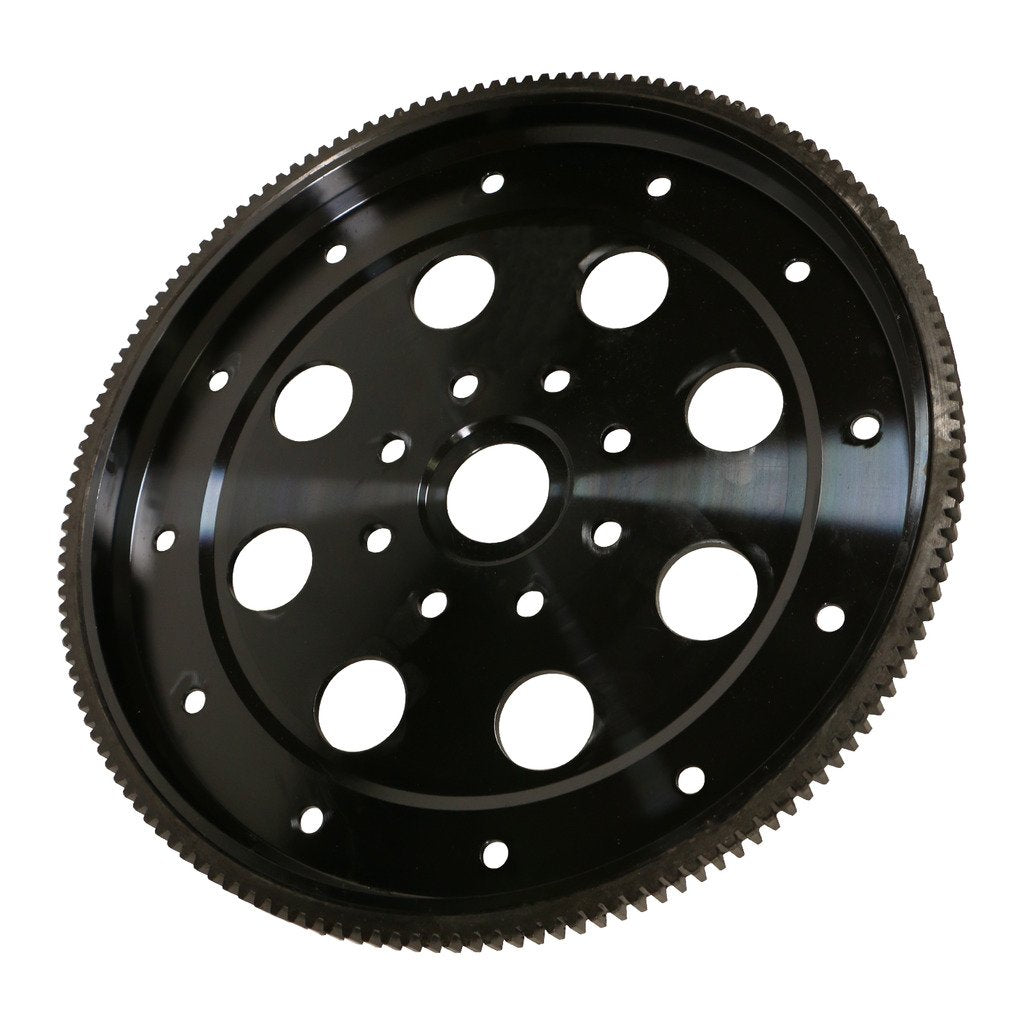

BD HI5 12-Bolt 5.9L Cummins Flexplate Dodge 1994-2007 47RH/47RE/48RE

Under high torque applications, the bolts between the torque converter and flex plate can slip. Eliminate this failure with twice the clamping load. The BD 12-bolt flexplate, which includes BD's Diamond Bite Shims, maximize torque holding capacity. The BD Flex Plate is proven to handle up to 3500 lb-ft of torque. The matching 12-bolt Hi5 torque converter is required to utilize all 12 bolts. A standard 6-bolt torque converters can still be installed using only 6 bolts.

• 12 bolt holes to help prevent shearing
• Meets SFI 29.3 Approval!
• Reliably handle up to 3,500 lb-ft of torque
• Twice the material of the stock flex plate
• Forged billet
• Precision-balanced
• Black Oxide coated to resist corrosion and prevents hydrogen embrittlement caused by common zinc plating
• Allows axial thrust unlike solid flywheel conversions
• Fits any OEM or aftermarket torque converter
• Direct, bolt-in replacement for the stock unit
• BD Diamond Bite Shims included

Parts

• 36-Months
• 150,000 Miles
